Performance and Reliability to Support Small Business Networks
Highlights
• 48 high-speed ports optimized for the network core or to support bandwidth-intensive applications
•
Power over Ethernet easily and cost-effectively powers wireless access
points, video cameras, and other network-connected endpoints
• Resilient clustering provides the ability to manage several switches as a single switch to support growing businesses
• Strong security protects network traffic to keep unauthorized users off the network
• Simplified, web-based management for easy installation and configuration
• Limited lifetime warranty

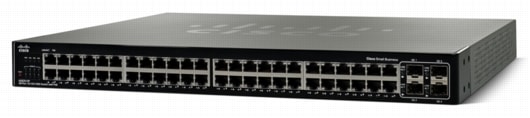

Figure 1. Cisco SGE2010P 48-Port Gigabit Switch: PoE
Product Overview
The Cisco®
SGE2010P 48-Port Gigabit Switch (Figure 1) allows you to expand your
network securely. Web-based configuration of the switch is secured using
SSL. The Cisco SGE2010P is optimized for maximum system availability,
with fully redundant stacking, redundant power options, and dual images
for resilient firmware upgrades. The switch helps secure the network
through IEEE 802.1Q VLANs, IEEE 802.1X port authentication, access
control lists (ACLs), denial-of-service (DoS) prevention, and MAC-based
filtering. The enhanced quality of service (QoS) and traffic-management
features help ensure clear and reliable voice and video communications.
For
wireless or voice over IP (VoIP) deployments, the Cisco SGE2010P
supports the IEEE 802.3af standard for Power over Ethernet (PoE).
Automatic load sensing enables the circuitry to detect PoE on the end
device before providing power. For safety, each port has independent
overload and short-circuit protection, along with LED indicators to show
power status. It provides 15W of available PoE power on up to 24 of the
Gigabit Ethernet ports for powering PoE-enabled wireless access points
or VoIP handsets. The maximum PoE available per device for all ports is
360W.
The
Cisco SGE2010P provides resilient stacking for up to four units, or 192
ports. A stack of units is managed as a single switch with one web
management interface. The Cisco SGE2010P can coexist in a stack with the
Cisco SGE2000 and SGE2000P 24-Port Gigabit Switches, and the Cisco
SGE2010 48-Port Gigabit Switch, for a maximum of 192 ports in a stack.
The stacking capability includes master/backup unit behavior, ring and
chain architecture, and hot insertion and removal of units.
Software
running on the Cisco SGE2010P interacts with provisioning, management,
and security software on both the site's services router and the service
provider's equipment. This interaction provides a simple, one-step
installation and access to web-administered features for the
administrator and users. Simple, affordable network operations
throughout the network's lifetime are the result.
Features
• Forty-eight 10/100/1000 Ethernet ports
• 4 mini Gigabit Interface Converter (mini-GBIC) slots (shared with 4 Ethernet ports) for fiber Gigabit Ethernet expansion
• IEEE 802.3af PoE delivered over any of the forty-eight 10/100/1000 ports
•
15.4W available power to a Gigabit Ethernet port for PoE-enabled
wireless access point or VoIP handsets (maximum per-device PoE delivery
of 360W available for all ports)
• Dual images for resilient firmware upgrades
• 96 Gbps nonblocking, store-and-forward switching capacity
• Simplified QoS management using 802.1p, differentiated services (DiffServ) or type of service (ToS) traffic prioritization
• Power redundancy when used with the Cisco RPS1000 380W Redundant Power Supply Unit
• Fully resilient stacking provides optimized growth with simplified management
• ACLs for granular security and QoS implementation
• Configuration and monitoring from a standard web browser
• Secure remote management of the switch via Secure Shell (SSH) and SSL encryption
• 802.1Q-based VLANs enable segmentation of networks for improved performance
Specifications
PORTS : 48 x RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T with
4 x Gigabit combo ports shared between mini-GBIC ports; console port;
auto MDI/MDI-X; autonegotiate/manual setting;
RPS port for connecting to redundant power supply unit
BUTTONS : Reset button
CABLING TYPE : UTP CAT 5 or better for 10BASE-T/100BASE-TX;
UTP CAT 5e or better for 1000BASE-T
LEDs : PWR, Fan, Link/Act, PoE, Speed, RPS, Master, Stack ID 1 8
POWER OVER ETHERNET : IEEE 802.3af PoE on delivered over any of the 48
10/100/1000 ports
Max power of 15.4W to an Ethernet port360W total available to all
ports with regular AC power, 280W total available with RPS
PERFORMANCE : Switching Capacity 96 Gbps non-blocking
Forwarding Capacity 71.4M packets per second (64-byte packets)
STACKING : Stack Operation Up to 192 ports in a stack,
Hot insertion and removal
LAYER 2: MAC Table Size 8K, Number of VLANs 256 active VLANs (4096 range)
VLAN : Port-based and 802.1q tag-based VLANs; protocol-based VLAN;
mgt VLAN; multicast TV VLAN; private VLAN Edge (PVE); GVRP
HOL Blocking : Head-of-line blocking prevention
MGT : Built-in web user i/face for easy browser-based config (HTTP/HTTPS)
MGT : SNMP : SNMP version 1, 2c, and 3 with support for traps
MGT : FIRMWARE UPG: Web browser upgrade (HTTP/HTTPS) and TFTP,
Dual images for resilient firmware upgrades
